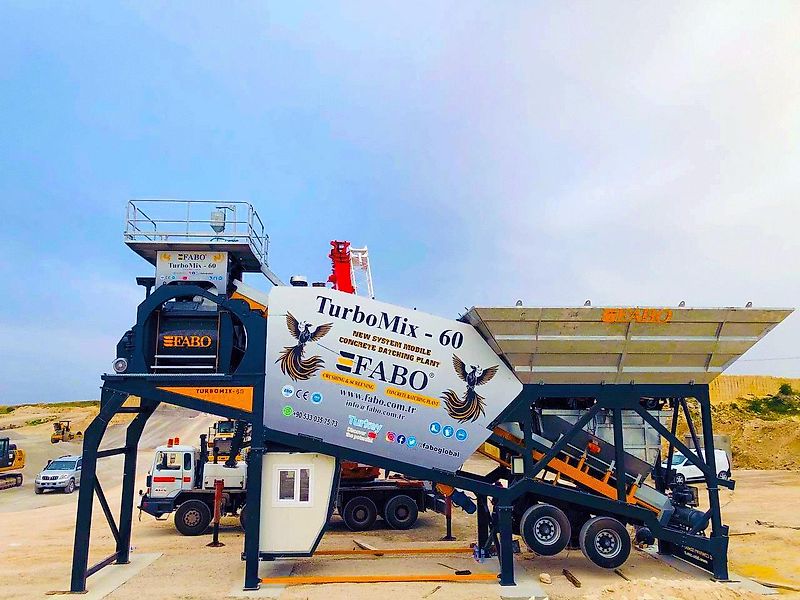

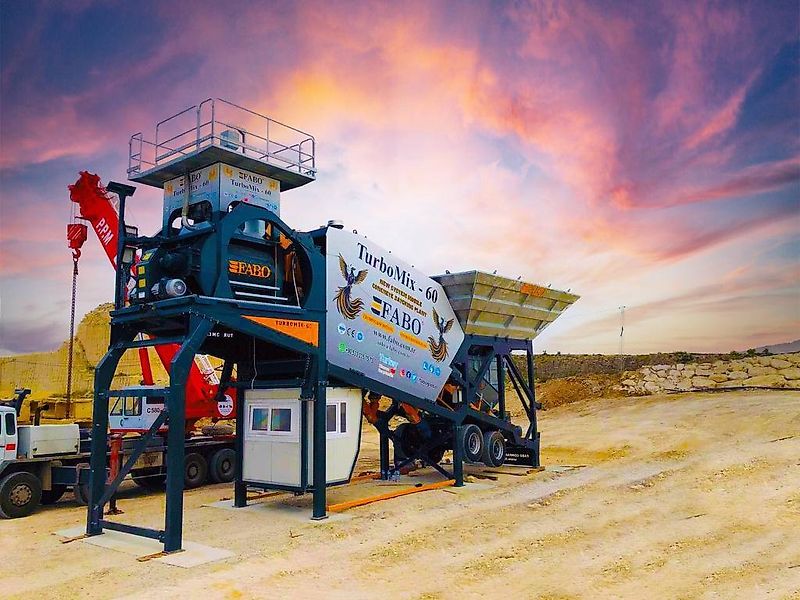

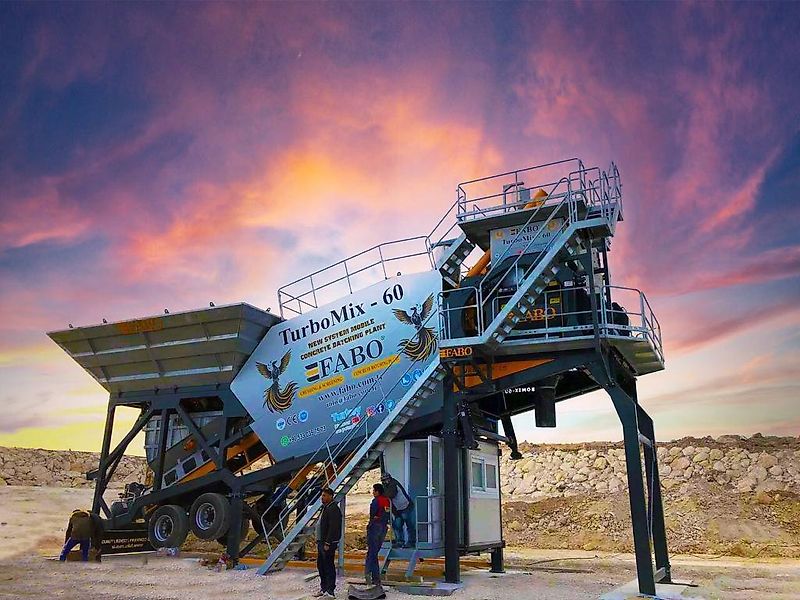

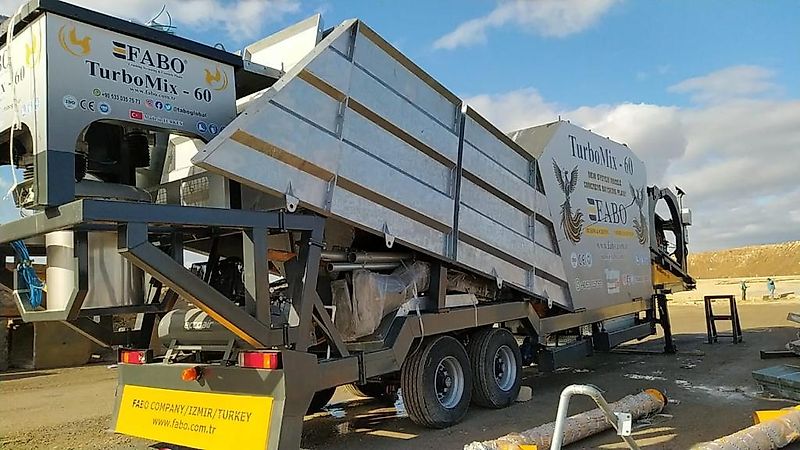

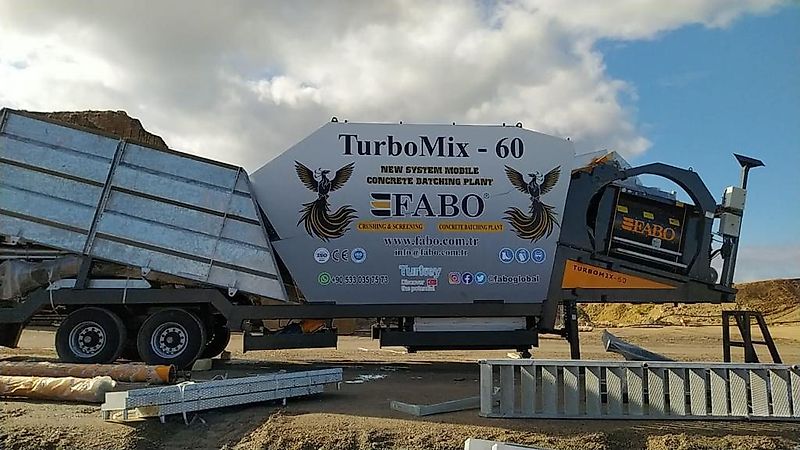

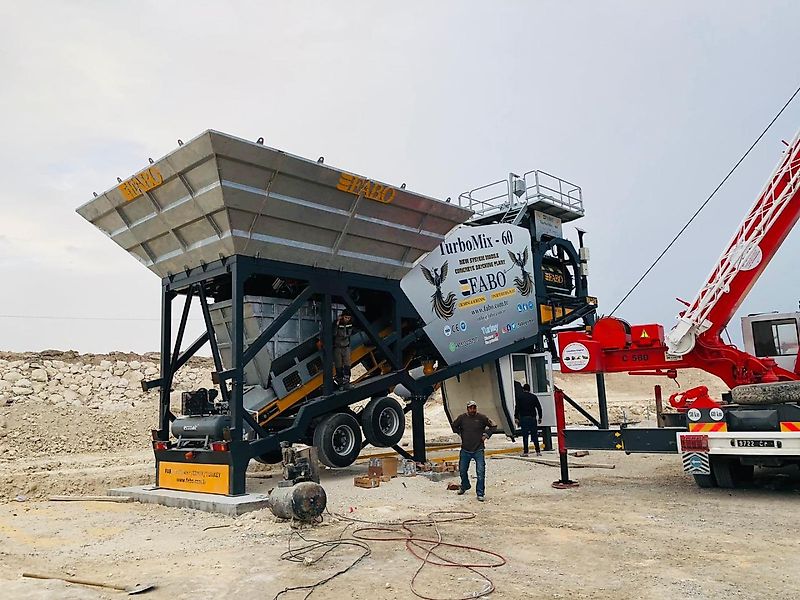

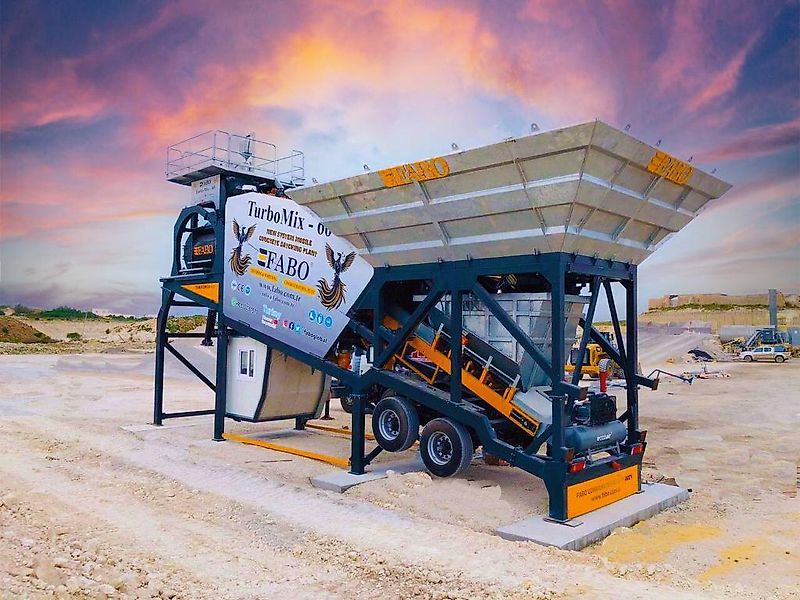

Fabo TURBOMIX-60 MOBILE CONCRETE PLANT WITH PRE-FEEDING SYSTEM

Περαιτέρω Περιγραφές

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

FABO TURBOMIX FULL AUTOMATIC MOBILE CONCRETE BATCHING PLANTS are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h.
FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 60
Production capacity: 60 m3
Dimensions (length x width x height): 15500 x 3000 x 4500 mm

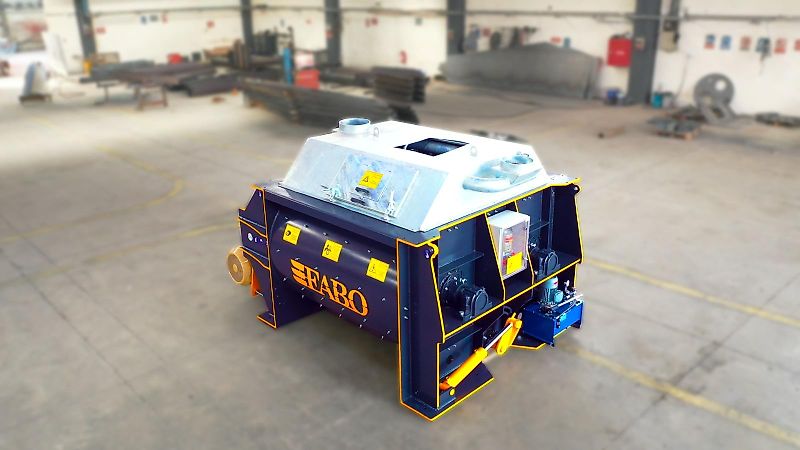

Mixer type: 1m3 twinshaft
Aggregate bunker: 4x10 m3
Transfer conveyor: 2500 kg
Cement weighing: 500 kg
Additives weighing: 30 kg
Water weighing: 200 lt
Total weight: 19650 kg
Total motor power: 60 kW
Cement silo is optional.

Turbomix 60 consists of:

• Aggregate Storage Hopper
• Aggregate Weighing Hopper
• Aggregate Transfer Conveyor
• Pan Mixer

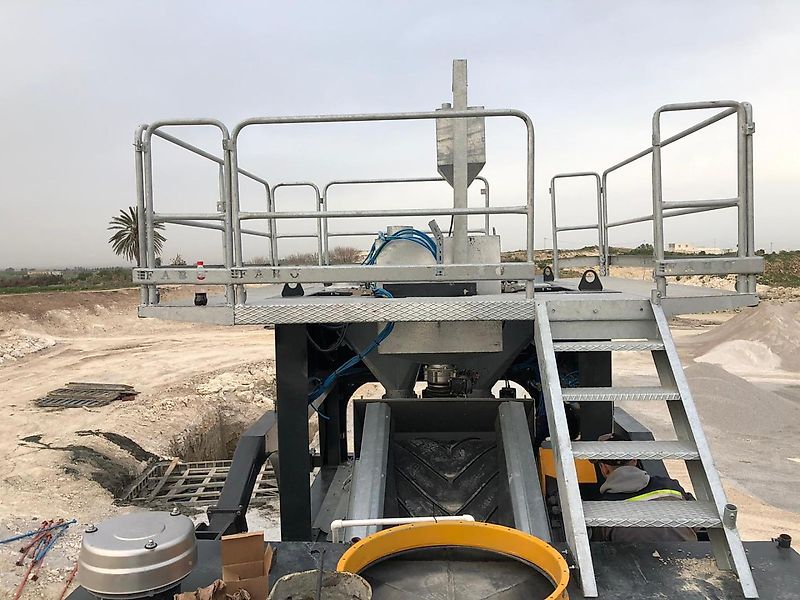

• Mixer Chassis, Walking Platforms, Ladder
• Water Weighing Hopper
• Cement Weighing Hopper
• Admixture Weighing Hopper
• Air Compressor
• Cement Screw Conveyor
• Bolted Cement Silo
• Top Filter, Safety Valve and Accessories
• Control Cabinnet
• PC and Automation System
• Control and Power Panel

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
